What is an AWS Region?
An AWS Region is a separate geographic area that contains multiple, isolated locations known as Availability Zones (AZs). Each region is physically separated from others to reduce the risk of correlated failures and to meet data residency or compliance requirements. Choosing the right region affects latency, pricing, regulatory compliance, and feature availability.
Key characteristics of Regions
- Geographical scope: Large, distinct geographic areas (e.g., us-east-1, ap-southeast-1).
- Data residency: Data stored in a region stays in that region unless moved.
- Service availability: Some AWS services or newer features may launch in a subset of regions first.
- Latency: Choose a region closest to your users for lower latency.
What is an Availability Zone (AZ)?
An Availability Zone (AZ) is an isolated datacenter (or group of datacenters) within a region with independent power, cooling, and networking. AZs within a region are connected with low-latency, high-throughput links. Using multiple AZs increases fault tolerance and availability.
Key characteristics of AZs
- Isolation: AZs are engineered to avoid correlated failures (power, network, physical events).
- Low-latency links: AZs in the same region are linked by fast networks, enabling synchronous replication for many services.
- Redundancy: Deploying resources across AZs helps survive AZ-level failures.

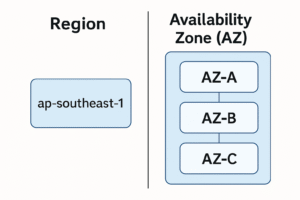

Regions vs AZs — Quick comparison
| Attribute | Region | Availability Zone (AZ) |
|---|---|---|
| Scope | Geographic / country-level grouping | Isolated data center(s) inside a region |
| Failure domain | Regional events (rare) | AZ-level failures (less rare) |
| Latency | Higher between regions | Low within region |
| Use | Compliance, global distribution | High availability and redundancy |
When to replicate across AZs vs across Regions
Choosing between AZ-level and region-level redundancy depends on your RTO/RPO, cost tolerance, and compliance needs.
- AZ replication (same region): Best for high availability and fast failover (e.g., multi-AZ RDS, EC2 Auto Scaling across AZs). Lower latency and usually lower data transfer cost than cross-region replication.
- Cross-region replication: Necessary for disaster recovery if an entire region becomes unavailable, for geo-redundancy, or for serving users across continents. Examples: cross-region S3 replication, cross-region RDS read replicas, multi-region DynamoDB Global Tables.
Best practices
- Use at least two AZs for production workloads: Distribute compute and storage across AZs for resilience.
- Plan your region selection: Consider latency, compliance, feature availability, cost, and networking (peering, Direct Connect).
- Combine multi-AZ with cross-region DR: Multi-AZ protects against AZ failures; cross-region protects against regional disasters.
- Automate failover and testing: Regularly test your failover runbooks and use automated health checks and Infrastructure as Code.
- Data transfer & cost management: Be mindful that cross-region data transfer costs are higher than intra-region transfer; design replication frequency around RPO.
- Regional service constraints: Verify that the AWS services and instance types you need are available in the region you choose.
Example architectures

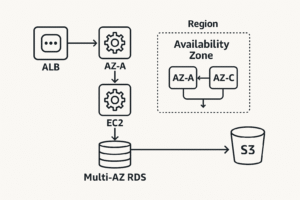

1. Highly available web app (single region)
Use an ALB (Application Load Balancer) that routes to EC2 / ECS tasks distributed across two or more AZs, backed by an RDS instance in Multi-AZ mode and S3 for static content.

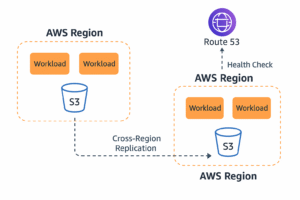

2. Disaster recovery (multi-region)
Primary region runs production. Configure cross-region replication for critical data (S3, DynamoDB, RDS snapshots), and maintain a warm standby or pilot light in the secondary region to meet your RTO objectives.
Latency & performance considerations
Latency is usually the deciding factor for region selection. Use tools like ping, traceroute, or AWS CloudPing / Region latency tests to compare real-world latency from your user base to candidate regions. For synchronous replication (e.g., databases requiring low-latency writes) stay within the same region and AZs where possible.
Compliance, legal & data residency
Some industries/regulators require that data remain in-country or region. Verify local compliance requirements (e.g., GDPR, data sovereignty laws) and choose region(s) accordingly. When legal constraints exist, cross-region options may be limited or require encryption and contractual safeguards.
Checklist to choose a Region & AZ strategy
- Where are your users located (latency)?
- Are there data residency or compliance constraints?
- Do required AWS services and instance types exist in the region?
- What are your RPO/RTO goals for critical workloads?
- What is your budget for data transfer and cross-region replication?
- Do you need multi-region DNS / global traffic management (Route 53, CloudFront)?
Frequently asked questions (FAQ)
Q: How many AZs are in a region?
A: Most regions have three or more AZs; larger regions may have more. AWS may add AZs over time; check the AWS console for the exact count in a specific region.
Q: Are AZ names the same across accounts?
A: No — AZ identifiers (like us-east-1a) are mapped differently across AWS accounts. Use AZ IDs or tags if you need deterministic AZ mapping between accounts.
Q: Will deploying across regions eliminate all downtime?
A: Multi-region can reduce the blast radius and help with regional disasters, but it introduces complexity. Combine automation, testing, and proper failover plans to reduce downtime.
